Basic Workshop Practice (Allied trade)
Electrician Trade Theory, Module-2
Basic Workshop Practice (Allied trade)
⭕️ Show all Answers

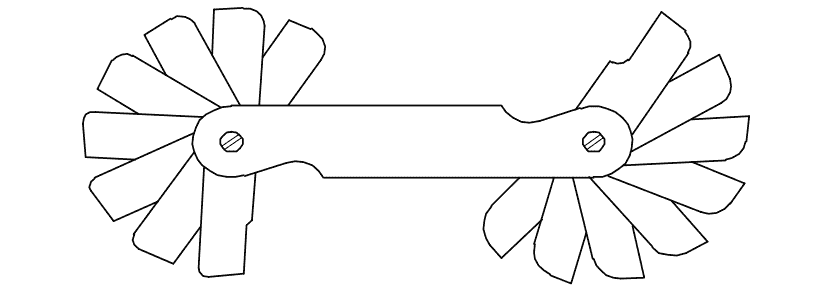

Q1: What is the use of this gauge?
- Check the internal radius of the job
- Check the diameter of cylindrical job
- Check the height and parallelism of job
- Set the job on machines parallel to datum

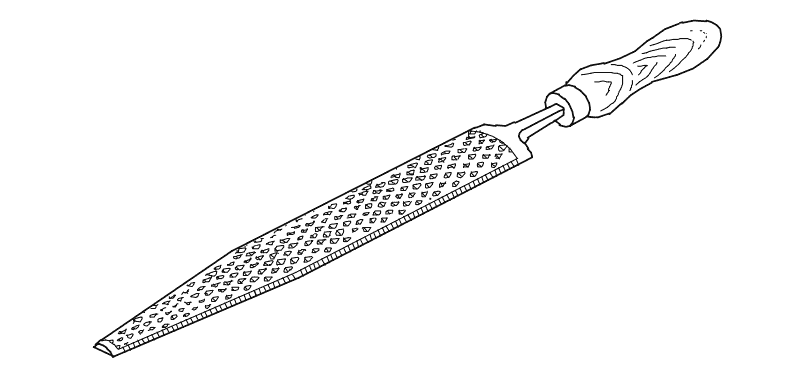

Q2: What is the name of the file?
- Rasp cut file
- Single cut file
- Double cut file
- Curved cut file

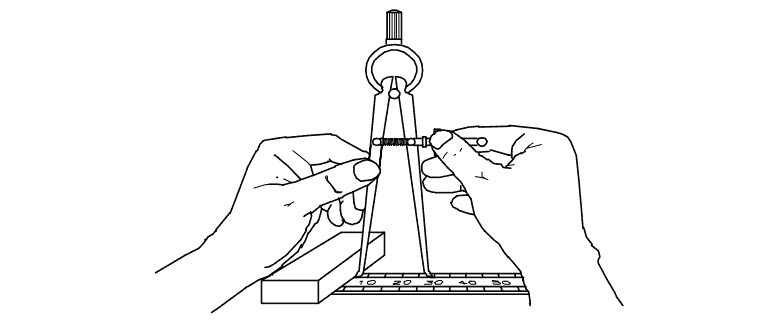

Q3: What is the name of the tool?
- Divider
- Inside caliper
- Odd leg caliper
- Outside caliper
Q4: What is the cause for twisting defect in timber?
- Defective storage
- Uneven shrinkage
- Improper seasoning
- Irregularity in growth of branches
Q5: What is the use of mortise chisel?
- General chiseling work in wood
- Making rectangular holes in wood
- Paring and finishing joints in wood
- Light chiseling cleaning sharp corners and in wood
Q6: Which type of stake is used for sharp bends in sheet metal?
- Square stake
- Hatchet stake
- Blow horn stake
- Bevel edge square stake
Q7: Which type of cold chisel is used for squaring materials at the corners?
- Web chisel
- Cross cut chisel
- Half round chisel
- Diamond point chisel
Q8: Which type of caliper is used to draw parallel lines along the outer edges of the materials?
- Inside caliper
- Jenny caliper
- Outside caliper
- Spring joint caliper

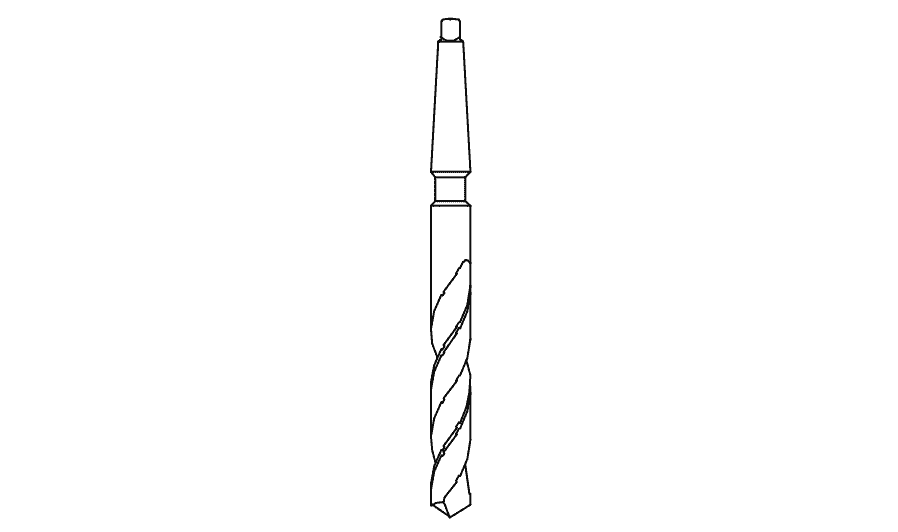

Q9: What is the name of the drill bit?
- Flat drill bit
- Taper shank bit
- Countersink bit
- Straight shank bit
Q10: What is the name of the stake used for general purpose in sheet metal work?
- Square stake
- Hatchet stake
- Blow horn square stake
- Bevel edge square stake
Q11: What is the number 1.25 indicates in ISO metric fine thread M12 x 1.25?
- Diametric of the thread
- Pitch of the thread
- Depth of the thread
- Length of the thread
Q12: What defect will occur in timber due to irregularity in growth of the branches?
- Knot
- Cupping
- Cracking
- Twisting
Q13: Which file is used for sharpening the blunt teeth of a tenon saw?
- Square file
- Round file
- Triangular file
- Half round file

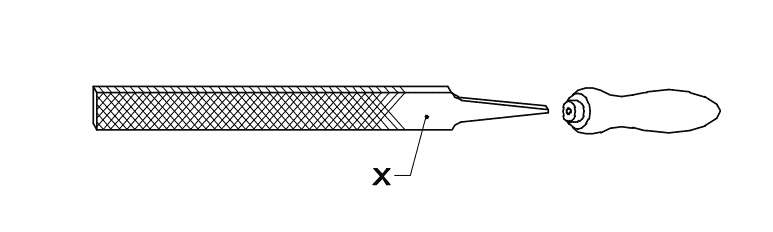

Q14: Name the part marked ‘X’ of the file.
- Edge
- Heel
- Tang
- Shoulder

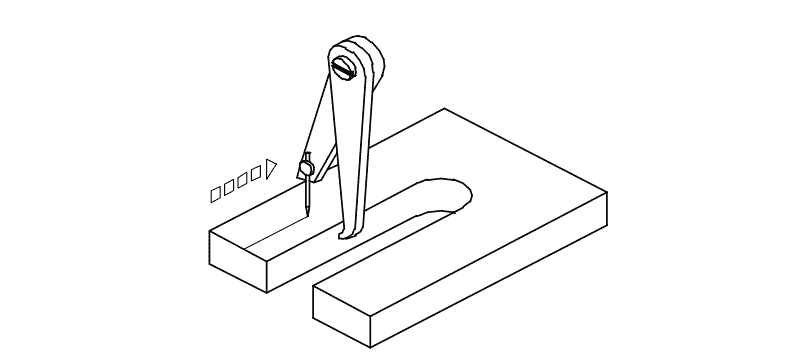

Q15: What is the name of the tool?
- Jenny caliper
- Inside caliper
- Outside caliper
- Firm joint caliper

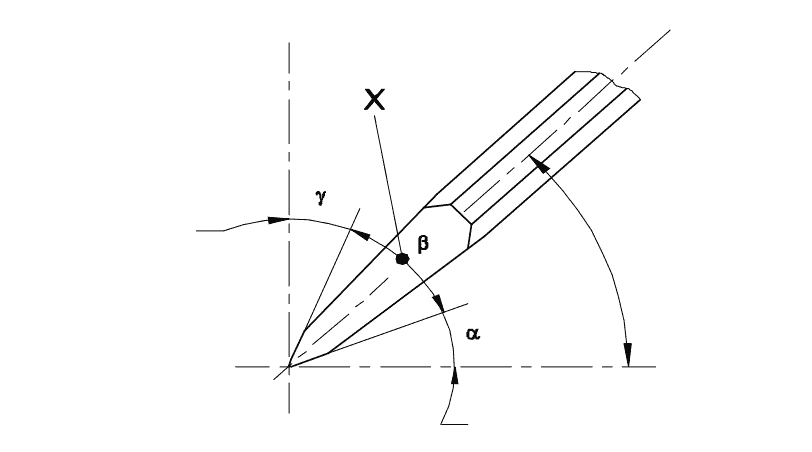

Q16: What is the name of the angle marked ‘X’ of the chisel?
- Rake angle
- Point angle
- Clearance angle
- Inclination angle
Q17: What is the use of firmer chisel?
- Paring and finishing joints
- General chiseling work
- Making rectangular holes in wood
- Light chiseling and to clean sharp corner
Q18: Which type of half lap joint is used if one part of a job meets another part at some distance from the ends?
- End-lap input
- Cross-lap joint
- Middle-lap joint
- Corner-half lap joint
Q19: Which type of notch is used for making a metal tray with 90° bend and an inside flange?
- ‘V’ notch
- Slant notch
- Square notch
- Straight notch
Q20: What is the purpose of hem folding in sheet metal work?
- Helps for forming a square box
- Helps for bending sheet metal easily
- Prevents burrs forming after cutting
- Prevents the sheet from damage
Q21: Which defect in the timber is caused to reduce its strength?
- Twisting
- Cupping
- Cracking
- Irregularity

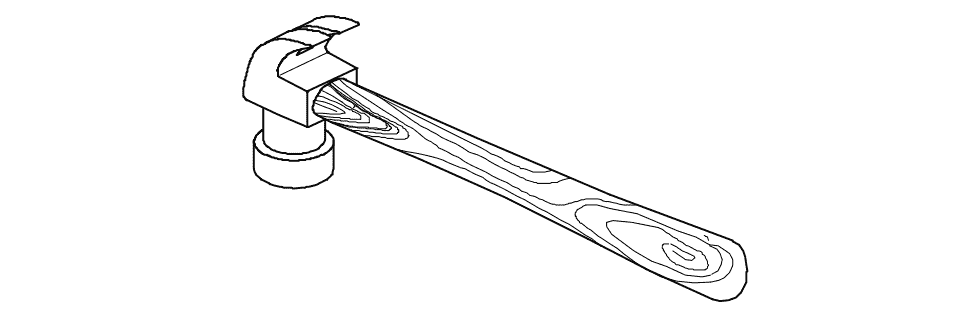

Q22: What is the name of the hammer?
- Claw hammer
- Ball pein hammer
- Cross pein hammer
- Straight pein hammer
Q23: Which defect in timber is caused due to improper seasoning?
- Knot
- Twisting
- Cracking
- Cupping

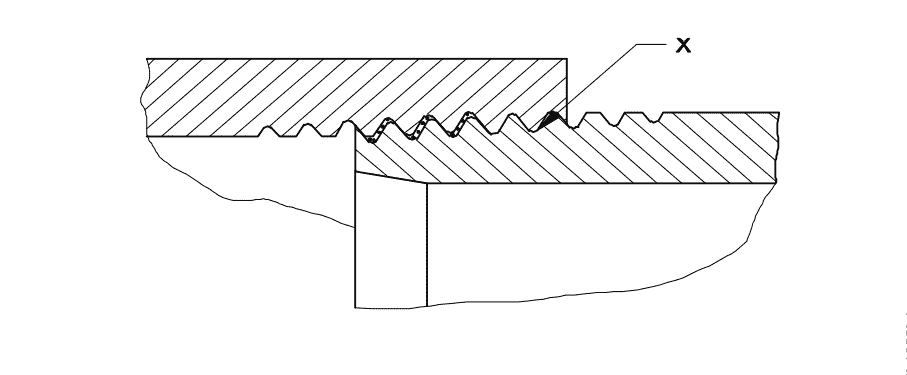

Q24: What is the name of the formation of thread marked as 'X' in the galvanized sheet pipe joint?
- Hemp
- Full form thread
- Tapered male thread
- Parallel female thread
Q25: Which type of notch is used for bending the edge of the sheet?
- V notch
- Slant notch
- Square notch
- Straight notch
Q26: What is the purpose of cross cut cold chisel?
- Cutting keyways
- Cutting curved grooves
- Squaring materials at corners
- Removing metal from large flat surface
Q27: Which type of notch is used to make a job with 90⁰ bend?
- V notch
- Slant notch
- Square notch
- Straight notch
Q28: Which type of curve cutting hand saw is used for internal cutting in wood?
- Compass saw
- Key hole saw
- Coping saw
- Fret saw

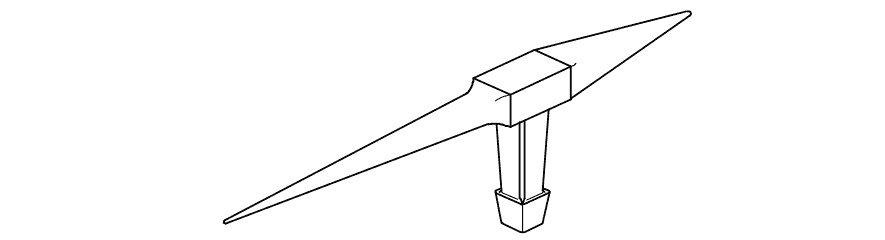

Q29: What is the name of the stake used for sheet metal work?
- Square stake
- Hatchet stake
- Blow-horn stake
- Bevel-edge square stake

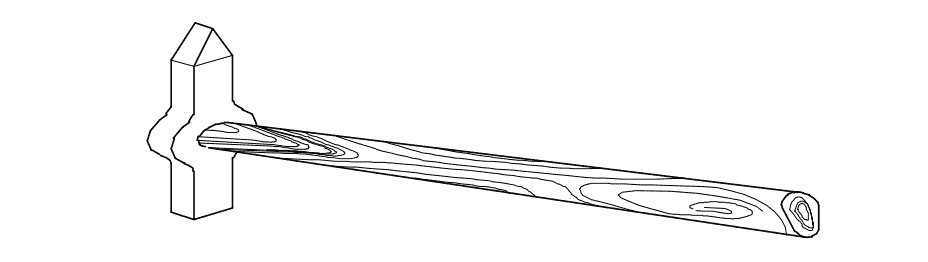

Q30: What is the name of tool?
- Claw hammer.
- Tack hammer
- Cross pein hammer
- Straight pein hammer
Q31: Which type of chisel is used for separating metals after chain drilling?
- Flat chisel
- Web chisel
- Cross cut chisel
- Diamond point chisel
Q32: Which type of stake is used for riveting or seaming tapered cone shaped articles?
- Square stake
- Hatchet stake
- Blow horn stake
- Bevel edged square stake
Q33: Which cause knot defect in timbers?
- Defective storage
- Uneven shrinkage
- Growth of branches
- Improper seasoning
